DPF Regeneration Cycles: What Are They And What Do They Do?

At Suncoast Fleet Services in Clearwater, FL, we ensure diesel engines run efficiently by maintaining DPFs and their regeneration cycles.

DPF Regeneration Cycles

At Suncoast Fleet Services in Clearwater, FL, our goal is to help fleet managers and drivers keep their diesel engines in top shape. One of the most significant developments in recent diesel technology is the implementation of Diesel Particulate Filters (DPFs) and their regeneration cycles. These components are integral to ensuring cleaner emissions and a healthier environment. But to maintain the system's efficiency, it's crucial to understand how DPF regeneration cycles work and their role in keeping your truck on the road.

What is a Diesel Particulate Filter?

A Diesel Particulate Filter (DPF) is a sophisticated filtration system designed to capture and store exhaust soot and particulate matter emitted by diesel engines. It consists of a honeycomb-like ceramic structure that traps particles as the exhaust gases pass through. By doing so, the DPF helps reduce harmful emissions significantly, allowing heavy-duty vehicles to meet increasingly stringent environmental standards.

However, this filter isn't a one-and-done device; it requires regular cleaning to prevent clogging and maintain its efficiency. This process is known as DPF regeneration.

The Role of DPF Regeneration Cycles

DPF regeneration cycles are the self-cleaning processes that occur periodically to burn off accumulated soot and debris within the filter. As the DPF captures particulate matter over time, it gradually fills up and begins to restrict exhaust flow, which can lead to reduced engine performance and increased fuel consumption.

The engine control unit (ECU) monitors the filter's pressure levels and initiates a regeneration cycle when it detects that the DPF is nearing its capacity. The goal is to raise the exhaust gas temperature high enough to burn off the soot, converting it into ash that is safely expelled through the exhaust system. This ensures the DPF remains functional and efficient, reducing harmful emissions and ensuring compliance with emission regulations.

Types of Regeneration Cycles

There are three main types of DPF regeneration: passive, active, and forced. Each serves a specific purpose in maintaining the filter's function.

Passive Regeneration: Passive regeneration occurs naturally when the engine's exhaust gases reach sufficiently high temperatures during normal driving. This typically happens during highway driving, where consistent high speeds and engine loads generate enough heat to burn off the collected soot gradually. Passive regeneration is an ideal situation because it requires no intervention and happens seamlessly as the vehicle is in use.

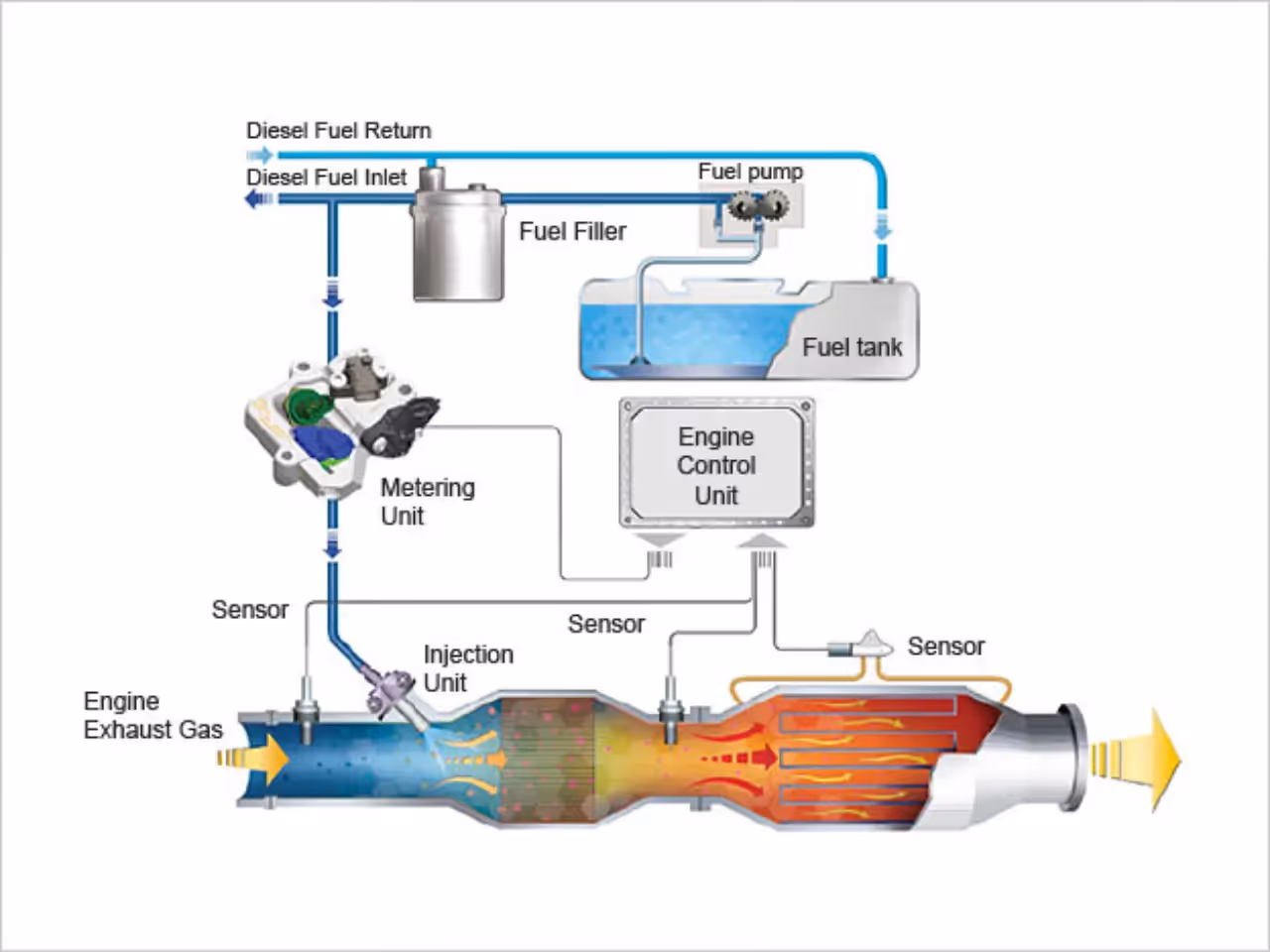

Active Regeneration: Active regeneration is a programmed event triggered by the ECU when the DPF's pressure levels indicate a need for cleaning, but the engine's exhaust temperature is too low for passive regeneration. The ECU activates the fuel injection system to inject extra fuel directly into the combustion chamber or exhaust stream. This additional fuel raises the temperature of the exhaust gases, igniting the soot and burning it off. Drivers may notice a temporary increase in fuel consumption during active regeneration cycles.

Forced Regeneration: Forced regeneration is a manual process initiated by a mechanic or the driver when both passive and active regeneration have failed or are insufficient to clean the DPF. This usually happens when the filter is heavily clogged, leading to engine power loss, dashboard warning lights, or even limp mode. A diagnostic tool is required to start the regeneration process, and the engine is run at a high idle to raise the exhaust temperature and burn off the soot. This process typically takes longer and requires the vehicle to be stationary.

Impact of Regeneration on Fuel Efficiency and Performance

DPF regeneration cycles are vital for maintaining optimal fuel efficiency and engine performance. A clogged DPF creates a significant restriction in the exhaust system, leading to increased back pressure that forces the engine to work harder. This results in higher fuel consumption and reduced power output.

However, frequent active or forced regenerations can also impact fuel efficiency due to the extra fuel needed to elevate the exhaust temperature. Thus, passive regeneration is the most desirable, as it minimizes fuel consumption while keeping the DPF clean.

To maximize the benefits of DPF regeneration, fleet managers and drivers should aim to optimize their driving patterns, allowing for longer, steady driving periods that facilitate passive regeneration. Regular vehicle maintenance and monitoring of DPF health are also crucial to preventing costly forced regenerations.

Warning Signs and Preventive Measures

Understanding the warning signs of a clogged DPF is crucial for preventive maintenance. Common symptoms include a loss of engine power, increased fuel consumption, and dashboard warning lights. In some cases, drivers may notice excessive smoke from the exhaust or experience the vehicle going into limp mode.

Regular DPF inspections are key to ensuring the filter functions correctly. Checking the pressure levels and soot accumulation helps detect potential issues early. In addition, drivers should ensure that the vehicle's fuel and oil meet the manufacturer's specifications, as low-quality fuel or oil can contribute to soot buildup.

Another preventive measure is to avoid idling for extended periods. Idling produces insufficient heat to initiate passive regeneration and can lead to rapid soot accumulation.

The Importance of Professional Support

Given the complexity of diesel particulate filters and their regeneration cycles, it's essential to seek professional assistance when necessary. At Suncoast Fleet Services in Clearwater, FL, our experienced team specializes in DPF maintenance and repairs, offering diagnostic checks and comprehensive cleaning services to keep your fleet compliant and efficient.

Understanding DPF regeneration cycles is vital for maintaining a healthy diesel engine and staying on top of emissions regulations. By ensuring regular maintenance and adopting the right driving patterns, drivers and fleet managers can minimize downtime, reduce costs, and keep their vehicles running smoothly on the road.
